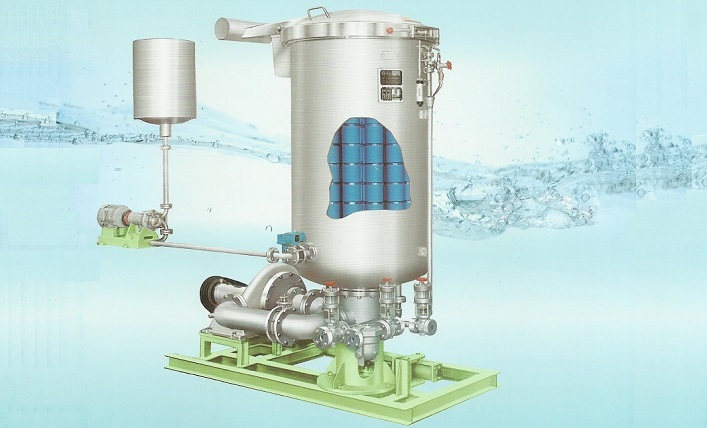

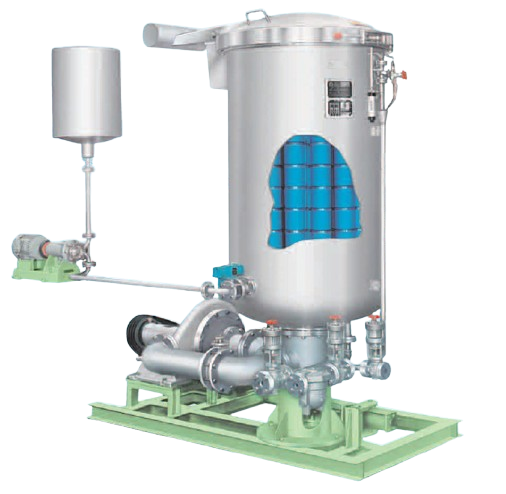

Hisaka LLC - Low Liquor Ratio Package Rapid Dyeing Machine
Hisaka LLC is a Low Liquor Ratio Package Rapid Dyeing Machine designed for high-efficiency yarn dyeing operations. This advanced system achieves exceptional productivity while significantly reducing water consumption, energy usage, and production time.
With Hisaka's proprietary Head Rotation System and low liquor ratio technology (under 1:6), the LLC delivers even dyeing results across all types of yarn packages - from natural to composite fibers.
With Head Rotation system, liquor sprays to all angles of cheese, ensuring even dye distribution in low liquor ratio conditions.
Handles various yarn forms: Cone/Cheese, Warp Beam, Top/Hank, Loose Stock, Tow, Muff - from natural to composite fibers.
Waste Heat Recovery System reuses heat from hot drain, reducing steam consumption and shortening process time. Automation reduces manual labor requirements.
Advanced control systems ensure consistent, repeatable dyeing results batch after batch, minimizing shade variations and customer complaints.
Hisaka LLC is suitable for dyeing various yarn package types:
H-Series (For Cone/Cheese and Warp Beam):
| Model | Loading Capacity (kg) | Cone/Cheese (pcs) |
|---|---|---|
| LLC-10/25 | 10~14 | 10 |
| LLC-40/50 | 30~41 | 30 |
| LLC-70/60 | 50~68 | 50 |
| LLC-100/80 | 80~108 | 80 |
| LLC-200/100 | 160~216 | 160 |
| LLC-300/120 | 220~297 | 220 |
| LLC-400/140 | 320~432 | 320 |
| LLC-500/160 | 410~554 | 410 |
L-Series (For Cone/Cheese, Loose Stock, Top and Hank):
| Model | Loading Capacity (kg) | Cone/Cheese (pcs) |
|---|---|---|
| LLC-5/25 | 5~7 | 5 |
| LLC-40/60 | 30~41 | 30 |
| LLC-70/80 | 48~65 | 48 |
| LLC-100/100 | 96~130 | 96 |
| LLC-200/130 | 150~203 | 150 |
| LLC-250/140 | 192~259 | 192 |
| LLC-300/160 | 246~332 | 246 |
| LLC-400/180 | 312~421 | 312 |
