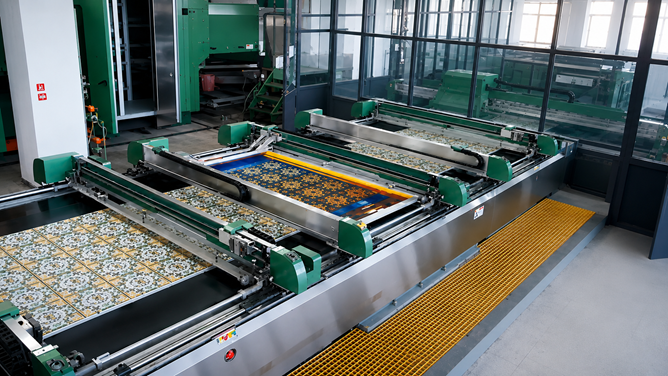

Ichinose iUGO Hybrid Printer combines Inkjet and Flat Screen Technology

Ichinose iUGO - Hybrid Printer (Inkjet + Flat Screen)

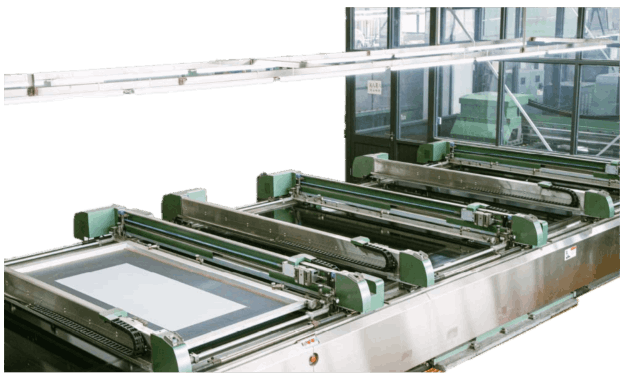

Ichinose iUGO - Hybrid Printing Machine

Ichinose iUGO is a revolutionary Hybrid Printing Machine developed by Toshin Kogyo (Ichinose) that combines the best of two worlds: the high-quality, unlimited design capabilities of Inkjet Printing and the uniformity, penetration, and cost-effectiveness of Flat Screen Printing.

By utilizing Inkjet for the motif design (the intricate pattern) and Flat Screen for the ground color (the background), the iUGO system solves the limitations of using either method alone. It offers lower production costs, special printing effects (like gold, silver, and glitter), and easy integration with existing flat screen machines.

Key Features

✅ No Design Limits

Unlike traditional screen printing which can be limited by screen size and complexity, the iUGO uses Inkjet technology for the motif. This means you can print unlimited colors, gradients, and complex photographic designs without the need for multiple screens.

✅ Low Cost Production

Inkjet ink is expensive. The iUGO reduces ink consumption by up to 30-40% by using Flat Screen color paste for the ground color. You only use ink for the motif, while the background is printed efficiently with color paste.

✅ Special Printing Effects

The Flat Screen component allows you to print special effects that Inkjet cannot achieve, such as Gold powder, Silver powder, Glitter, and Opal prints. This opens up new possibilities for high-value fashion textiles.

✅ Integrated Pretreatment

The iUGO features a dedicated pretreatment unit directly on the machine. This allows the fabric to be pretreated and printed in a continuous, streamlined workflow, significantly simplifying the production process and reducing manual handling compared to offline pretreatment methods.

Advantages of Hybrid Printing

FeatureInkjet OnlyiUGO Hybrid
Ground Color Cost High (Uses expensive ink) Low (Uses color paste)
Special Effects Limited Gold, Silver, Glitter, Opal
Pretreatment Separate process required Done during printing
Design Complexity Unlimited Unlimited (Inkjet Motif)

Technical Specifications

SpecificationDetails
Printing System Hybrid (Inkjet + Flat Screen)
Inkjet Section For Motif Design (Unlimited colors)
Flat Screen Section For Ground Color & Special Effects
Compatible Inks Reactive, Disperse, Acid, Pigment
Special Effects Gold, Silver, Glitter, Opal
Pretreatment Integrated / Simultaneous Printing
Ink Savings Reduces ink consumption by up to 1/3

Ideal Applications

  • Fashion Textiles - High-quality, complex designs with fast turnaround.
  • Special Effects Printing - Gold, silver, glitter for luxury fabrics.
  • Small to Medium Batch Production - Low setup cost, no need for multiple screens for motifs.
