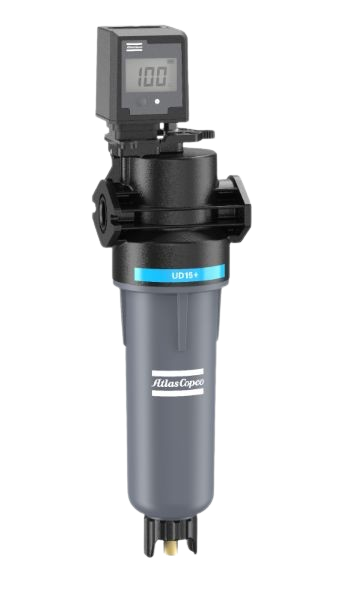

Atlas Copco UD15+ particle air filter with digital pressure drop indicator display for compressed air filtration in industrial applications

 Atlas Copco Air Filters - Compressed Air Filtration Solutions

Atlas Copco Air Filters remove particles, oil aerosols, and odors from compressed air to protect downstream equipment and ensure air purity. Multi-stage filtration solutions including Dust Filters, Particle Filters, and Activated Carbon Filters for all industrial applications.

Essential for maintaining ISO 8573-1 air quality standards, protecting pneumatic tools, instruments, and sensitive processes. Complete range including dust filters, particle filters, activated carbon filters, and air/oil separators for all compressor brands.



KEY BENEFITS:

  • ✅ Complete Filtration - Dust, particles, oil, and odors removal
  • ✅ Equipment Protection - Prevent damage to tools and machinery
  • ✅ Product Quality - Eliminate contamination risk
  • ✅ Low Pressure Drop - Minimize energy loss
  • ✅ Long Service Life - Extended replacement intervals
  • ✅ ISO Compliance - Meet air quality standards
  • ✅ Easy Maintenance - Quick element replacement
  • ✅ Universal Fit - Compatible with all compressor brands



FILTER TYPES

🌬️ Dust Filters

Remove dust, large particles, and rust from compressed air. Pre-filtration stage for general applications.

  • ✅ Filtration: 1 to 25 micron
  • ✅ Residual Oil: N/A
  • ✅ Applications: General manufacturing, pneumatic tools, pre-filtration
  • ✅ Service: 12 months or 4,000 hours

🔍 Particle Filters

Remove fine particles, oil aerosols, and water droplets from compressed air. Essential for oil-injected compressors.

  • ✅ Filtration: 0.01 to 0.1 micron
  • ✅ Residual Oil: 0.01 to 0.1 mg/m³
  • ✅ Applications: Painting, instrumentation, general industry
  • ✅ Service: 12 months or 4,000 hours

⚫ Activated Carbon Filters

Remove oil vapor and odors from compressed air. Critical for food, beverage, and pharmaceutical applications.

  • ✅ Filtration: Oil vapor removal
  • ✅ Residual Oil: 0.003 mg/m³
  • ✅ Applications: F&B, pharma, electronics, breathing air
  • ✅ Service: 12 months or 2,000 hours

🔄 Air/Oil Separators

High-efficiency separators remove oil from compressed air streams in oil-injected screw compressors.

  • ✅ Efficiency: 99.9% oil removal
  • ✅ Residual Oil: < 2 mg/m³
  • ✅ Applications: Oil-injected screw compressors
  • ✅ Service: 12 to 24 months

💧 Water Separators

Remove bulk liquid water from compressed air lines before it reaches downstream equipment.

  • ✅ Efficiency: 98% liquid removal
  • ✅ Drain: Automatic or manual
  • ✅ Applications: After coolers, receivers, main lines
  • ✅ Service: Minimal maintenance

🏭 Nitrogen Generator Filters

Specialized filters for nitrogen generation systems using PSA or membrane technology.

  • ✅ Filtration: 0.01 micron
  • ✅ Oil Removal: 0.003 mg/m³
  • ✅ Applications: Nitrogen generators, membrane systems
  • ✅ Service: 12 months or 4,000 hours

TYPICAL FILTRATION STAGES

1

Dust Filter

Remove dust and large particles

→
2

Particle Filter

Remove fine particles and oil

→
3

Carbon Filter

Remove oil vapor and odors



TYPICAL APPLICATIONS

🍺 Food & Beverage

Prevent product contamination

💊 Pharmaceutical

Meet GMP air quality requirements

🔌 Electronics

Protect sensitive components

🚗 Automotive Painting

Ensure flawless paint finish

🏥 Medical/Breathing Air

Safe air for respiratory use

⚙️ Pneumatic Tools

Extend tool service life



LEARN MORE ABOUT AIR FILTRATION



Take the next step with Atlas Copco Compressors!

📞 Call: (022) 7810889

📧 Email: silvanus@tiaraservice.com

📍 Visit: Jl. A.H. Nasution No. 262, Bandung 40294

Request Quotation Chat on WhatsApp
