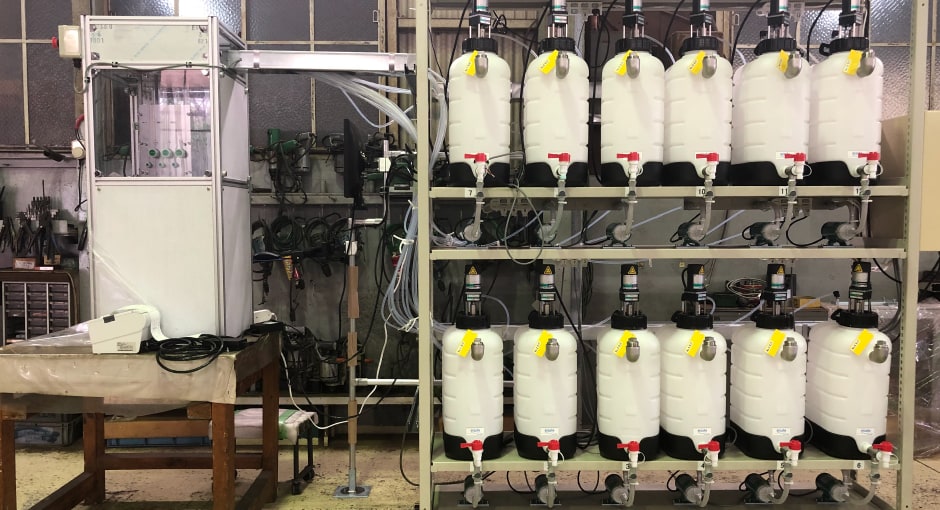

Ichinose MTCK - Mini Color Kitchen Automatic Colorant Dispensing System for Small to Medium Batch Production
Ichinose MTCK (Mini Color Kitchen) is an automatic colorant dispensing system developed for automating the color adjustment process, conserving materials, and improving work efficiency. This compact system is specifically designed for small to medium batch production with output ranging from 100 grams to 5 kilograms per batch.
Key Advantage: MTCK can be installed in factories where space is limited, making it ideal for textile mills and printing facilities that require automated color dispensing but have space constraints. Despite its compact footprint, MTCK delivers high precision, excellent reproducibility, and reliable performance for production environments.
Production Capacity: With batch sizes from 100g to 5kg, MTCK bridges the gap between laboratory-scale Color Kitchen for Strike-off and large-scale production systems like COLOR WEIGH. Perfect for small batch orders, sample production, and color adjustment in manufacturing facilities.
Ichinose MTCK transforms the color adjustment process from a manual, time-consuming operation into an automated, precise, and efficient workflow. The system delivers measurable improvements in color accuracy, material conservation, and production efficiency.
Can be installed in factories where space is limited. MTCK features a compact footprint that fits into existing production facilities without requiring major renovations. External dimensions: Height 2,100mm × Width 2,820mm × Depth 650mm. Perfect for textile mills with limited floor space.
Create the required amount of each specified color, exactly when you need it. MTCK produces color paste in batches from 100 grams to 5 kilograms, ideal for small to medium production orders, sample runs, and color adjustments. Eliminate waste from over-mixing and delays from under-mixing.
Reliable, repeatable colors batch after batch. MTCK uses electronic scales with 0.01g precision to ensure accurate colorant dispensing. Every batch matches the color formulation data exactly, eliminating shade variations and customer complaints.
Create ink that is precisely defined by the color formulation data. MTCK reads color recipe data and dispenses colorants with high precision, ensuring that production output matches laboratory-developed formulations. Seamless workflow from design to production.
Conserve materials and improve work efficiency. Automated dispensing minimizes colorant waste, reduces manual labor requirements, and lowers overhead costs. Precise measurement ensures optimal material usage, improving profitability and sustainability.
The operating environment is improved to permit greater output. Automation eliminates manual color mixing tasks, allowing operators to focus on higher-value activities. Faster color preparation means shorter lead times and increased production capacity.
The work delivered will be more accurate and reliable. MTCK is built with Japanese precision engineering and rigorous quality control. Electronic scales, automated dispensing, and computerized control ensure consistent, dependable operation in production environments.
| Specification | Details |
|---|---|
| Liquid Volume | 100cc to 5,000cc (can be changed depending on specifications) |
| Capacity of Master Liquid Tank | 2L or 20L (can be changed to suit specifications) |
| Number of Nozzles | 20 nozzles max |
| Measurement Method | Electronic scales (displays unit resolution with minimum fineness of 0.01g) |
| Ink Pigments Used | Reaction pigments or dispersant |
| External Machine Dimensions | Height 2,100mm × Width 2,820mm × Depth 650mm |
| Power Source and Voltage | 100VAC/200VAC (50/60Hz) 6KW |
| Batch Output Range | 100 grams to 5 kilograms |
| Application | Small to medium batch production, color adjustment |
| Installation | Compact design for space-limited factories |
Note: Individual machine designs can be created to suit the factory space available and the amounts of liquid to be used.
Ichinose MTCK is specifically designed for small to medium batch color paste production and color adjustment in textile printing facilities.
Over 50 years of Ichinose (Toshin Kogyo) expertise in textile printing machinery. MTCK is built with precision engineering and rigorous quality control, manufactured in Japan with world-class standards.
Unique compact footprint allows installation in factories where space is limited. Depth of only 650mm means MTCK can fit into existing production lines without major facility modifications. Maximize floor space utilization.
Reduces material costs, labor, and overhead costs through automated dispensing and precise measurement. Improves work efficiency by eliminating manual color mixing. Lower total cost of ownership through optimized material usage and reduced waste.
